【Product name】HSS CIRCULAR SAW BLADES
【Product material】 HSS-DMo5
【Product Size/ Packing】details below
【Product color】gray
【Product category】SAW BLADES
HSS CIRCULAR SAW BLADES
This is our standard product for cutting stainless steel and medium hardness of 550-700 MPa. This is a high speed steel with a certain proportion of cobalt added to all the alloying elements already present in HIGH speed steel DMo5. Cobalt does not form carbides, but stabilizes critical grain growth and, most importantly, maintains high hardness at operating temperatures. This property is very important for cutting very thick materials such as stainless steel and very hard metals with high cutting temperatures. The range of production specifications and HSS Dmo5 products are the same.
The coating
Microhardness(HV0.05)显微硬度(HV0.05)
3500
Deposition temper-ature range(°C) 沉积温度范围(°C)
< 500°C
Friction Coefficient against Steel(Dry)(p) 摩擦系数(卩)
0.30
Max.application temperature(°C) 最高工作温度(°C)
1100°C
Color 颜色
Light Grey/亮灰色
Key Characteristics 性能
high hardness,very good oxidation resistance 高硬度，很好的抗氧化
Primary Applications 应用
coating for a wide range of carbide,cermet and high speed steel tooling 广泛的应用于硬质合金，陶 瓷盒咼速钢刀具的涂层
machining of cast iron and nickel based high temperature 加工铸铁和镣基高温合金
high speed operations,semi-dry or dry machining alloys 高速干切削各种合金

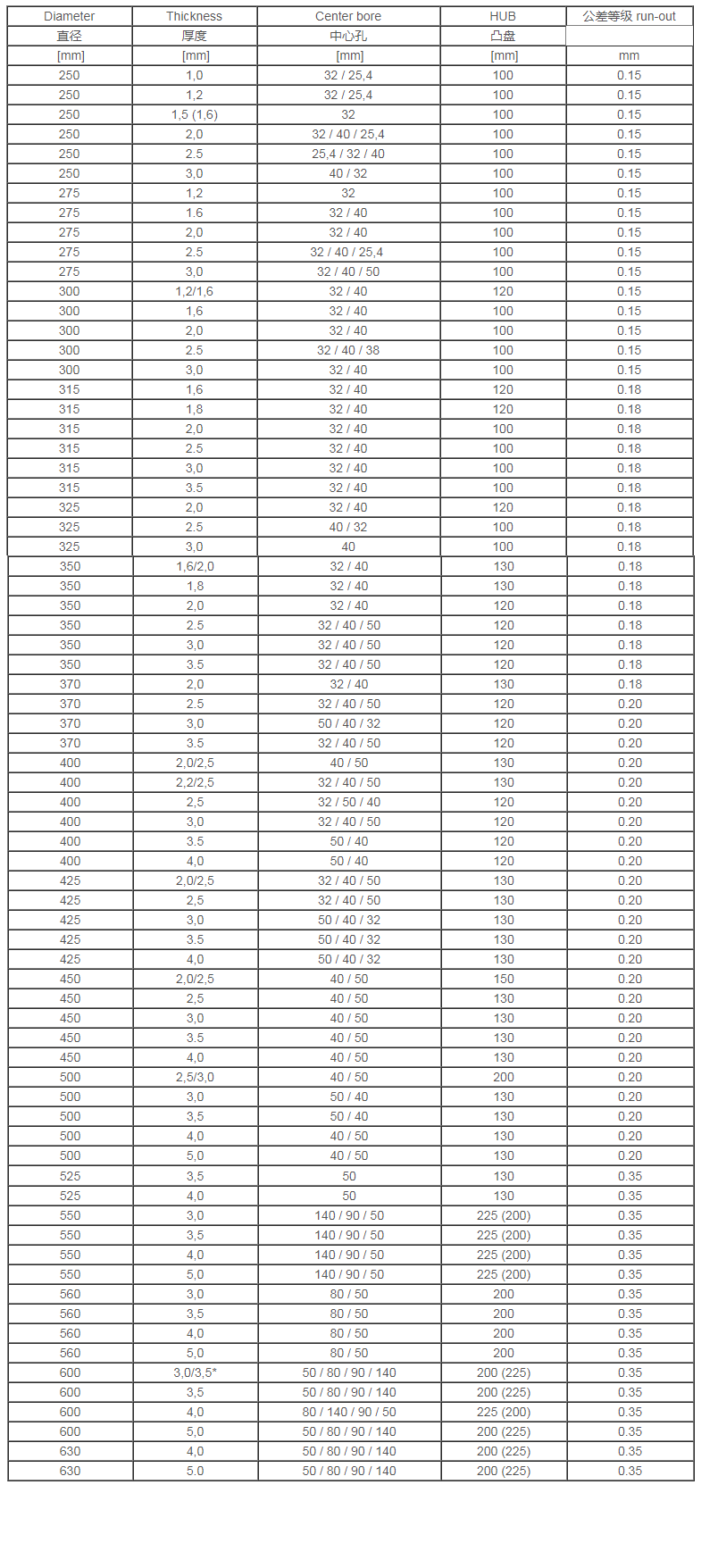

Product size
